SPECIFICATIONS:
- Application : Residential single and multi-family doors.
- Certifications : ANSI Grade 2.
- Exposed Trim : Wrought brass or bronze.
- Keying : Schlage C Keyway with nickel silver keys. Locks are keyed 5-pin.
- Door Range : 1⅜” to 1¾” (35mm - 45mm) standard.
- Backset : Universal latch standard, fits either 2⅜” (60mm) or 2¾” (70mm) backsets.
- Warranty : Lifetime mechanical warranty.

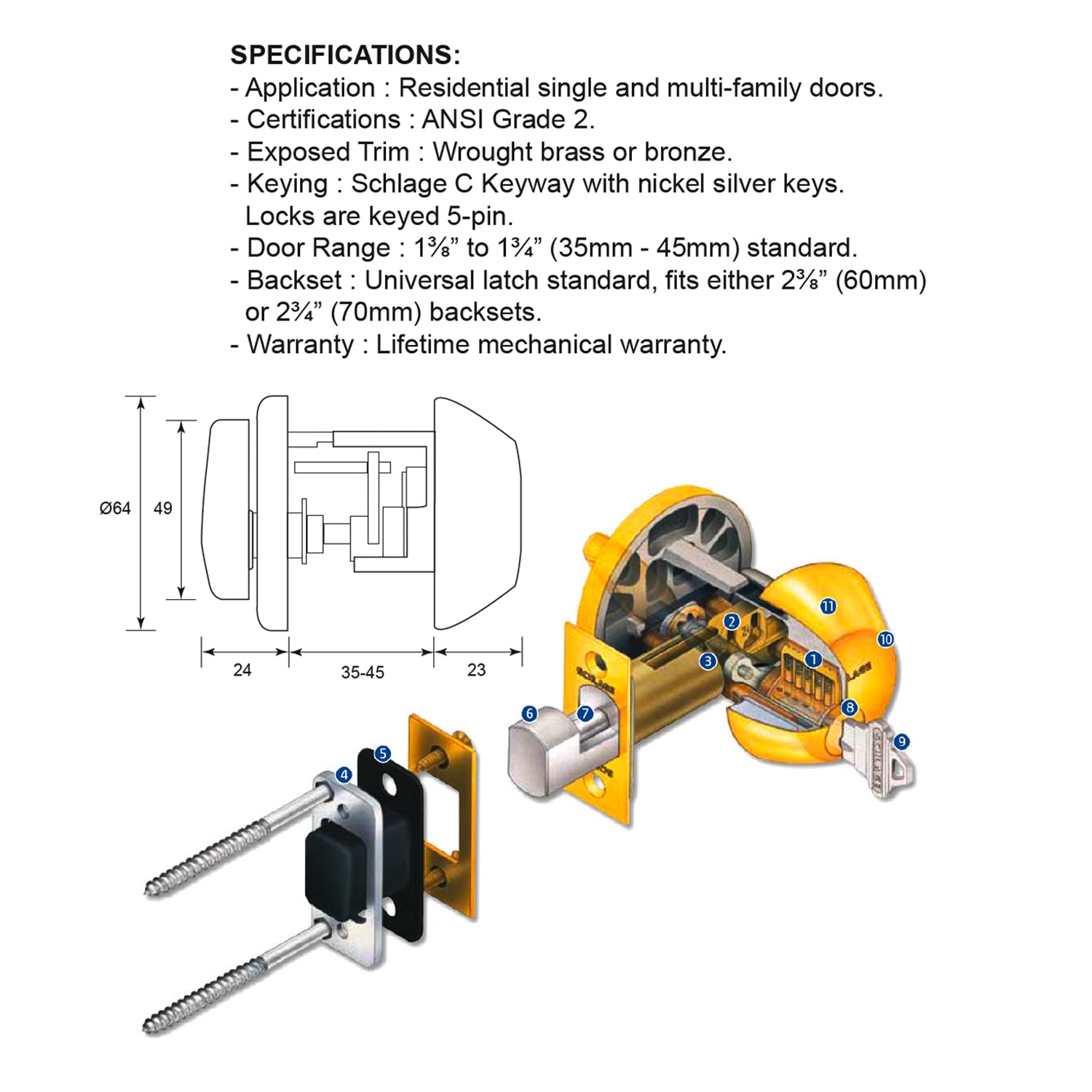

ADVANTAGES:
1. Solid brass 5 - or 6-pin tumble cylinder provides durability and long-lasting operation
2. Dual backset fits either 2⅜” (60mm) or 2¾” (70mm) applications
3. Attached driver bar ensures easy installation
4. Solid steel door reinforcer is ⅛” (3mm) thick with 3” (76mm) screws and strengthens the door jamb
against forced entry
5. Optional dust pocket insert available
6. Full 1” (25mm) throw deadbolt with hardened steel core provides maximum protection against kick-in
7. Conceal ¼” (6mm) hardened steel roller resists sawing and cutting
8. Brass key cylinder provides maximum protection against key cylinder attack
9. Nickel silver Schlage key and cylinder pins deliver strength, durability and smooth, long-lasting operation
10. Solid one-piece design of exterior housing provides maximum protection against hammer and crow
bar prying attacks
11. Concealed spin ring resists wrenching or prying
