Vertical Fold Up Window
Space-Saving Folding Window System
The Vertical Fold Up Window is a practical folding window system designed for spaces where you want to maximise ventilation and opening space.

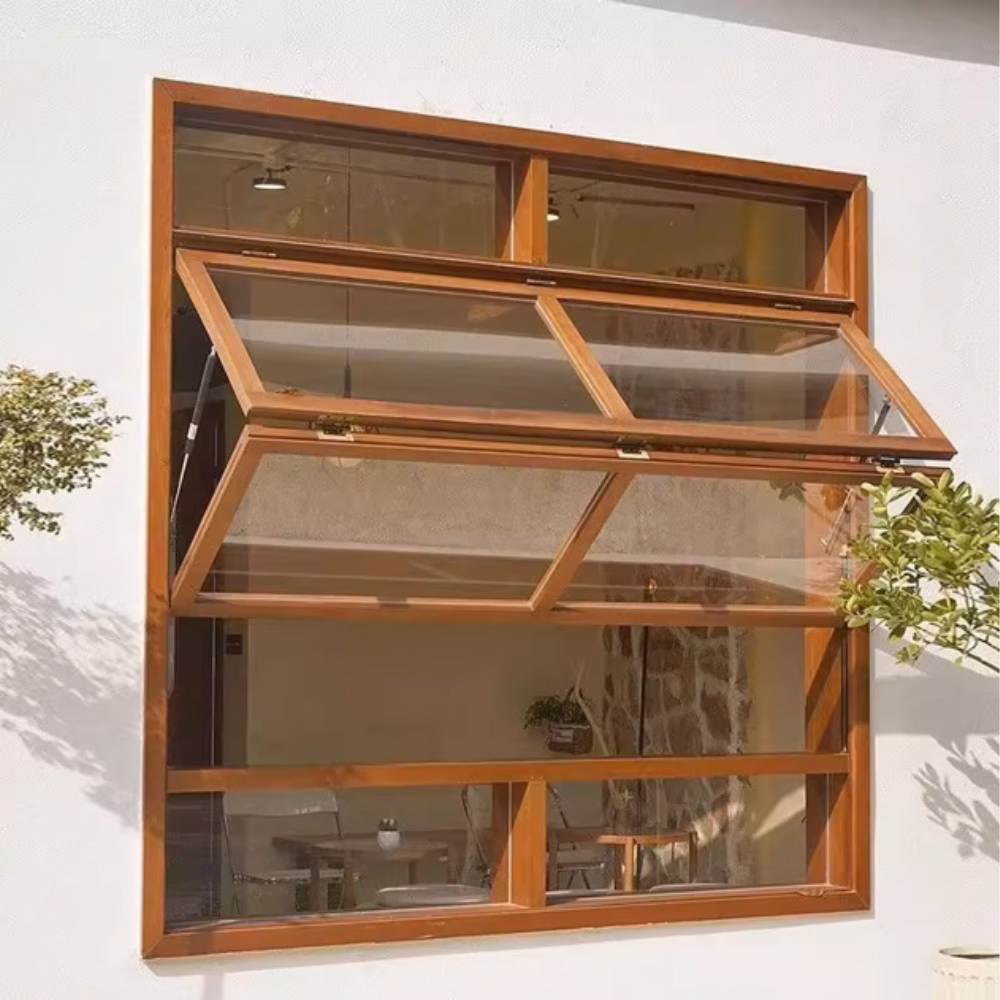

The window panels fold upward, creating a wide and convenient opening while keeping the window neatly folded when not in use.
Key Features
-
Vertical Fold-Up Design – Window panels fold upward to save space.
-
Wide Opening – Provides a large opening for better ventilation and accessibility.
-
Aluminium Track System – Smooth and practical folding operation.
-
Gas Spring Assisted – Includes gas springs to help support and control the window during opening and closing.
-
Durable Hardware – Supplied with rollers, door latches and bi-fold hinges.
-
Flexible Window Width – Suitable for window frame widths from 400 mm to 1500 mm.
-
Suitable for Outdoor & Indoor Applications – Ideal for kitchens, service counters, cafés, shops and other spaces requiring a large opening.
Product Specifications
| Specification | Details |
|---|---|
| Material | Aluminium / Stainless Steel / Nylon Wheel |
| Finish | Black |
| Track Length | 1600 mm |
| Window Frame Thickness | 40 mm |
| Window Frame Width | 400–1500 mm |
| Single Panel Folding Window Height | Min. 300 mm – Max. 800 mm |
| Load Capacity | 30–50 kg / set |

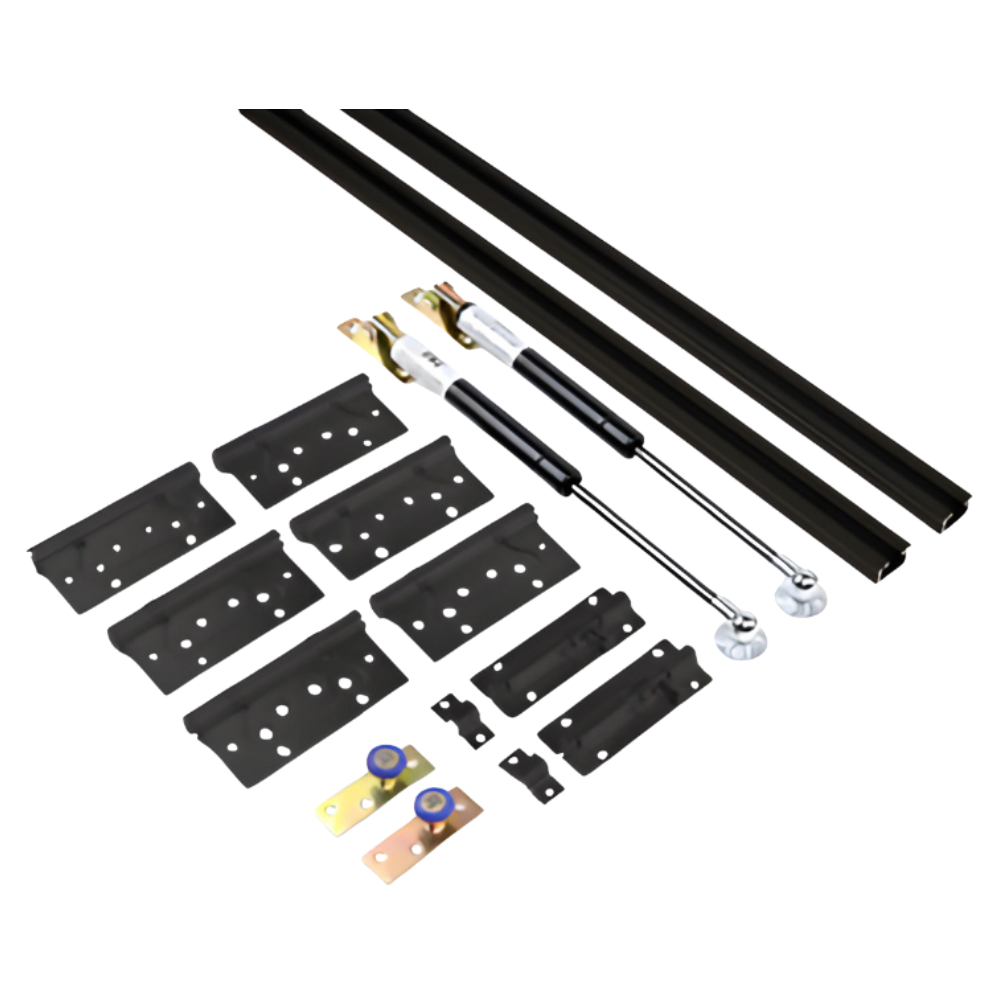

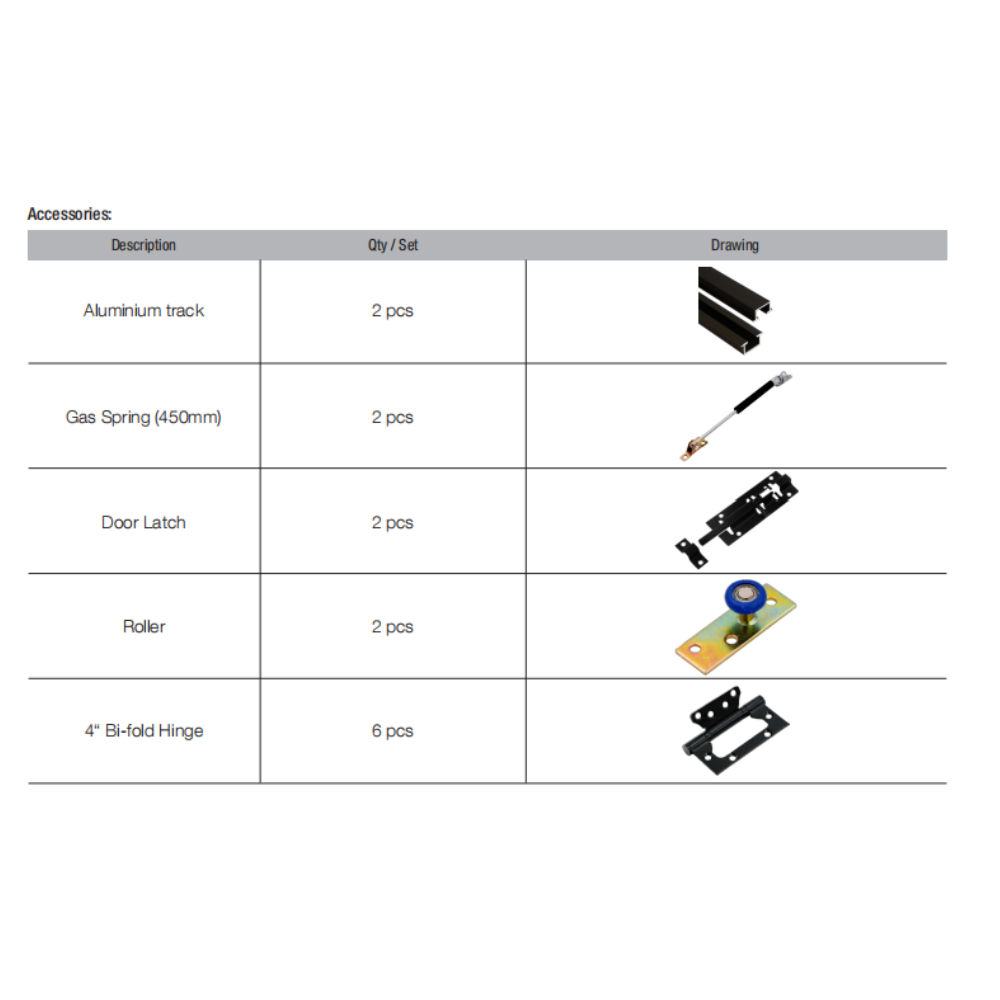

Included Accessories
Each set includes:
-
Aluminium Track × 2 pcs
-
Gas Spring (450 mm) × 2 pcs
-
Door Latch × 2 pcs
-
Roller × 2 pcs
-
4" Bi-Fold Hinge × 6 pcs
Recommended Applications
Kitchen Windows • Café Windows • Service Counters • Shopfronts • Outdoor Serving Areas • Residential & Commercial Projects
Important Note
This product is a folding window hardware system. Window glass, frame and other components are not included unless specifically stated.
Dimensions and specifications are for reference only and may be subject to change without prior notice.
