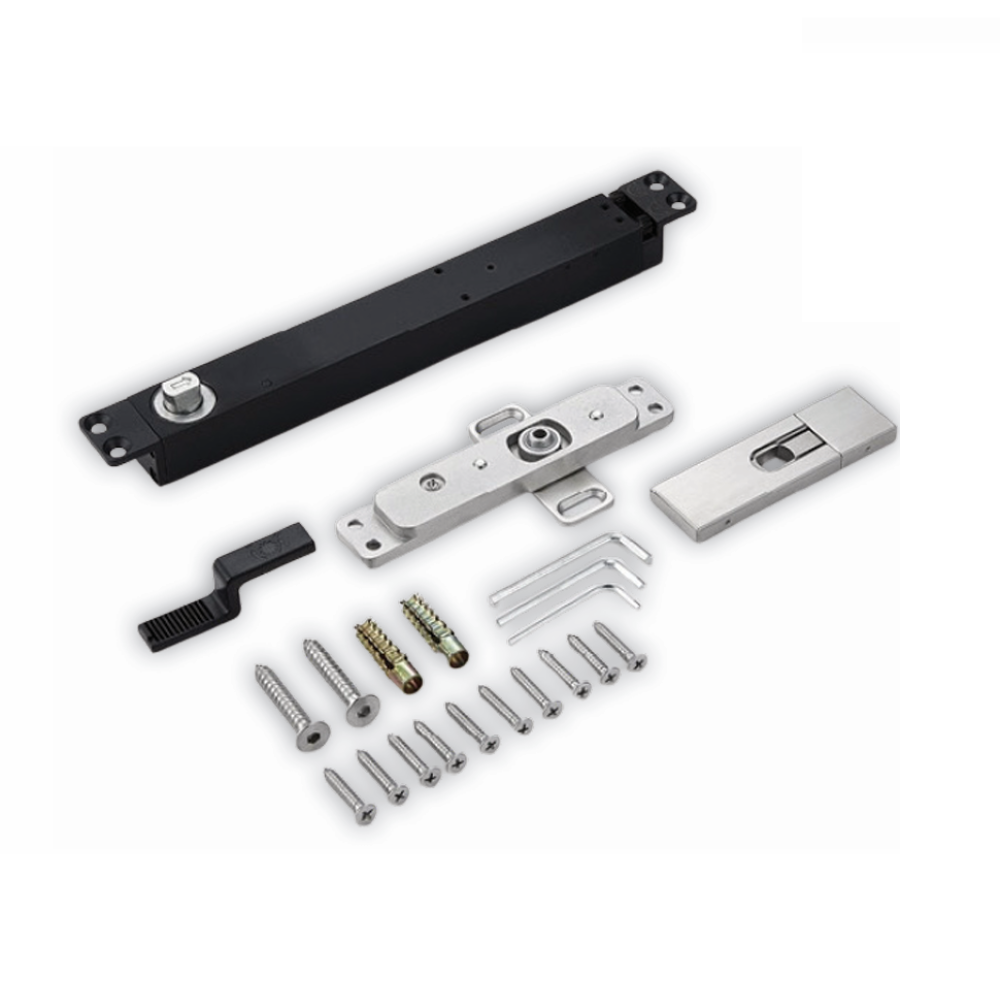

🚪 Pivot Door Fitting with Hydraulic Soft Closing (90°)
Concealed Pivot Hinge System for Wooden Doors
Upgrade your door system with this heavy-duty hydraulic pivot hinge. Designed for smooth 90° opening and soft closing, it delivers a modern, seamless, and premium door experience.
✨ Key Features
✔️ Two-Dimensional Adjustable Base
Flexible installation with precise alignment for perfect door positioning
✔️ 90° Hold-Open Function
Door stays open at 90° angle for convenience and functionality
✔️ Hydraulic Soft Closing
Smooth and controlled closing to prevent slamming
✔️ Bi-Directional Opening
Supports both clockwise and counterclockwise operation
✔️ Concealed Design
Hidden installation for a clean and modern aesthetic
✔️ Heavy Duty Structure
Strong load-bearing system suitable for daily use
📏 Specifications
- Model: DR-DC-Z090-100
- Material: Steel + Plastic
- Door Thickness: 38–50 mm
- Max Door Width: ≤1200 mm
- Load Capacity: 100 kg
- Opening Angle: 90°
- Function: Hold-open + Soft close
🏡 Suitable For
- Wooden pivot doors
- Interior modern doors
- Residential & commercial spaces
- Frameless or framed door systems

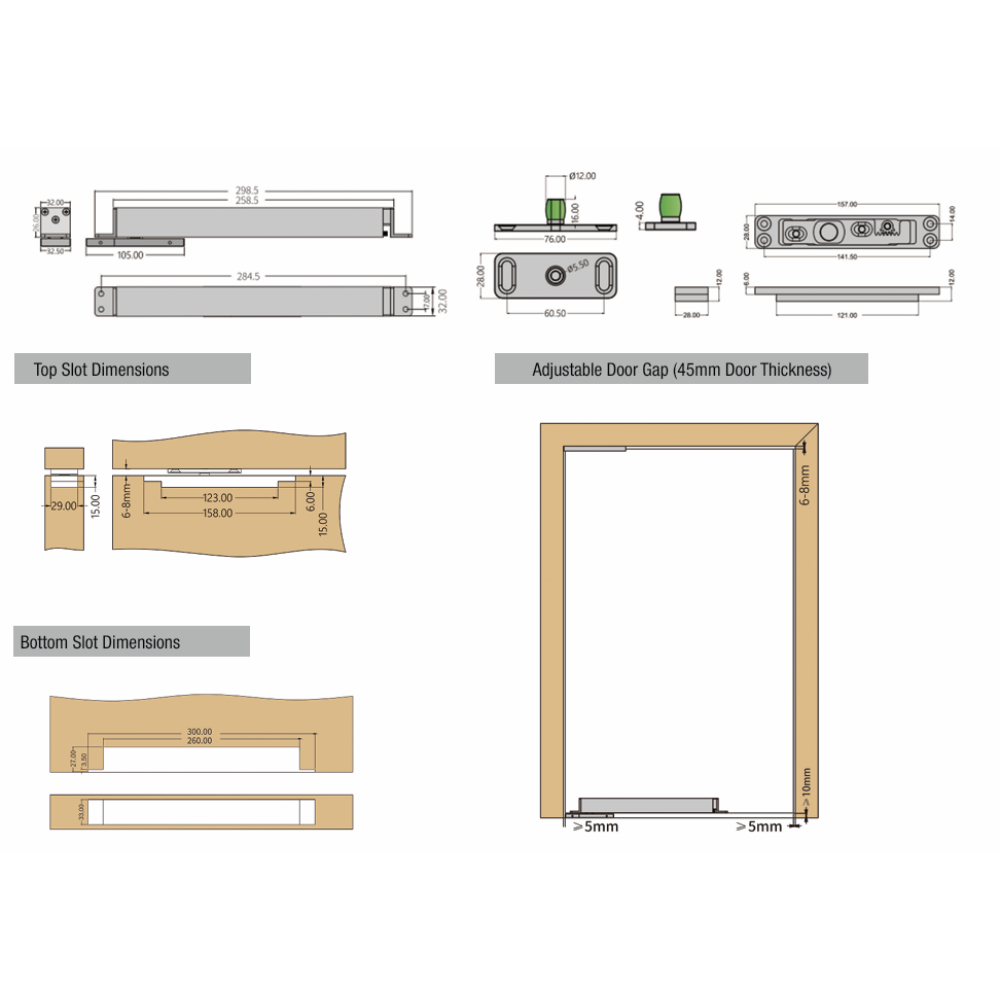

🔧 Installation Details
- Top and bottom mounting system
- Requires slot cutting for proper fitting
- Adjustable door gap for precise alignment
- Recommended for professional installation
