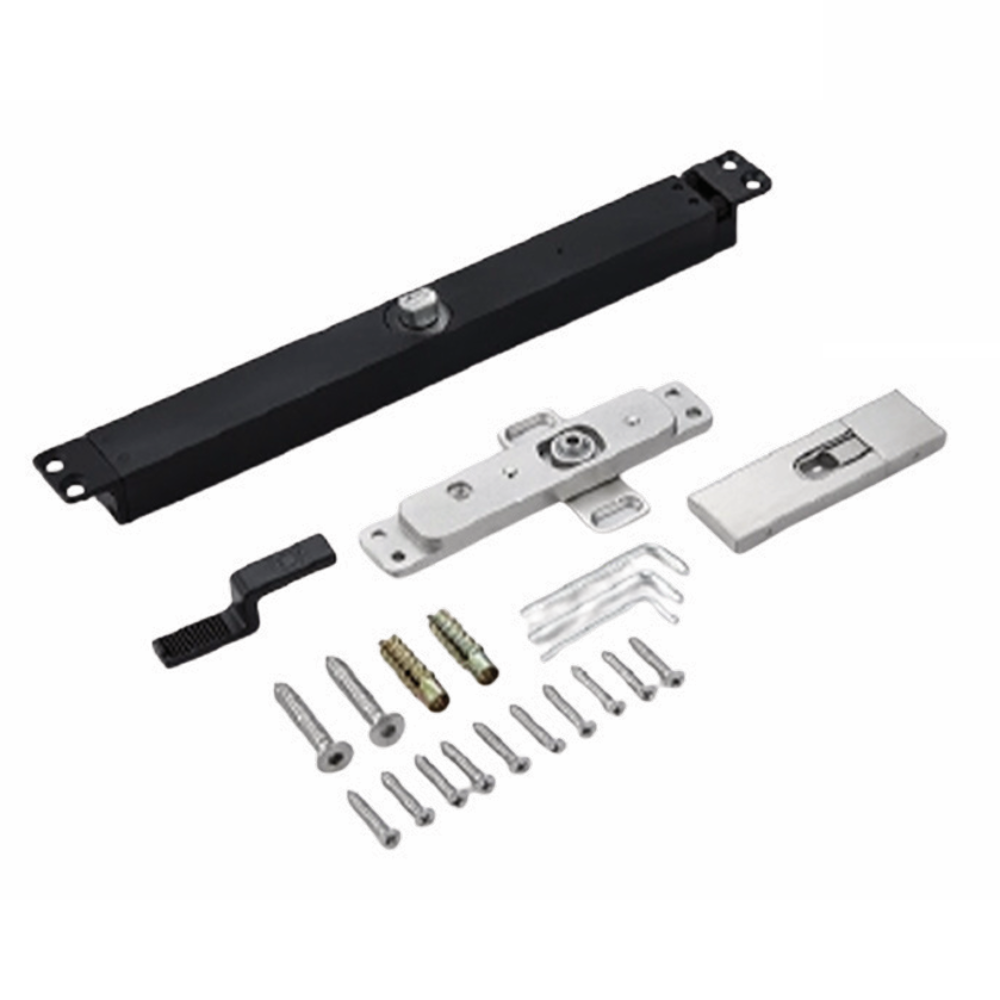

🚪 Pivot Door Fitting with Hydraulic Soft Closing (180°)
Heavy-Duty Concealed Pivot Hinge System
Enhance your space with a premium pivot door system designed for full 180° opening and smooth hydraulic soft closing. Ideal for wide entrances and modern interior designs.
✨ Key Features
✔️ Two-Dimensional Adjustable Base
Allows precise alignment for easy and flexible installation
✔️ 180° Wide Opening Angle
Fully open your door for maximum accessibility and space utilization
✔️ Hold-Open Function at 90°
Keeps the door in position when needed
✔️ Hydraulic Soft Closing
Ensures smooth, controlled, and silent closing
✔️ Bi-Directional Opening
Supports both clockwise and counterclockwise operation
✔️ Concealed Installation
Hidden design for a clean and modern appearance
✔️ Heavy-Duty Performance
Built to support large and heavy doors
📏 Specifications
- Model: DR-DC-Z180-100
- Material: Steel + Plastic
- Door Thickness: 38–50 mm
- Max Door Width: ≤2000 mm
- Load Capacity: 100 kg
- Opening Angle: 180°
- Function: Hold-open + Soft close

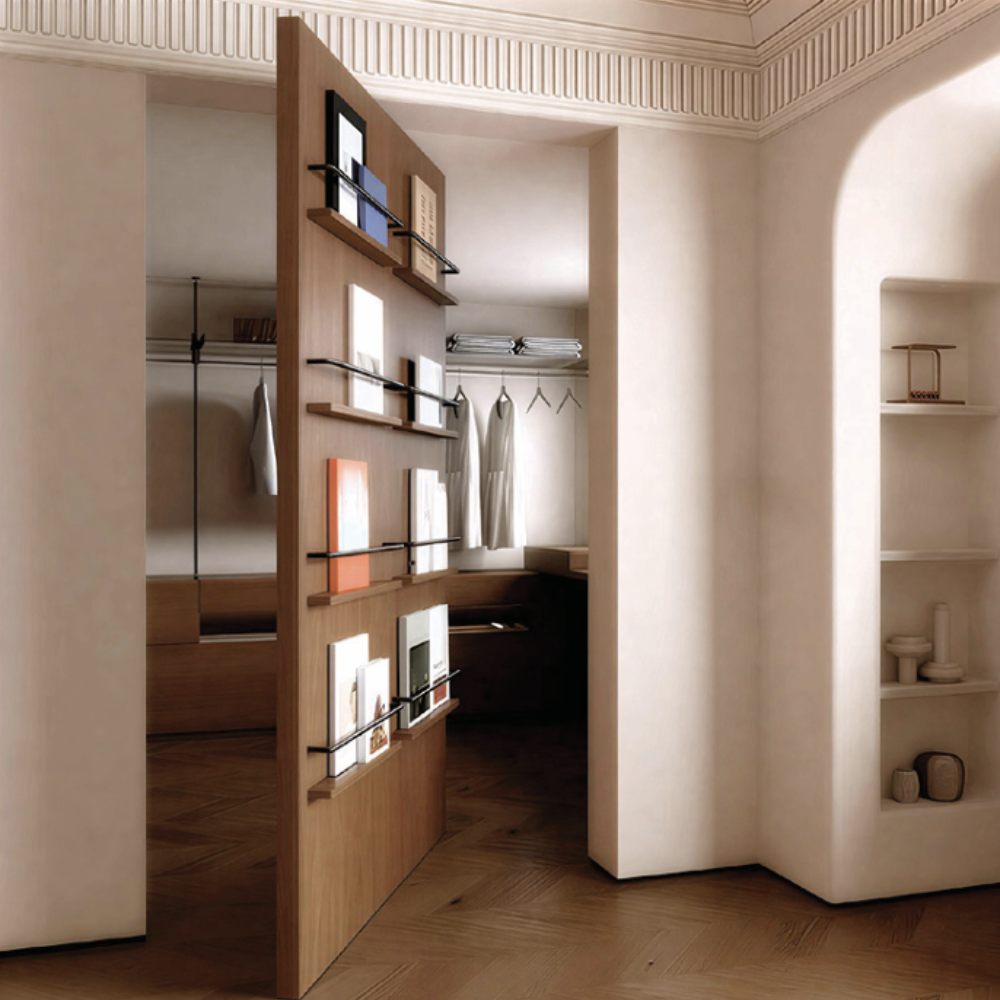

🏡 Suitable For
- Large wooden pivot doors
- Walk-in wardrobes / feature doors
- Modern residential & commercial spaces
- Wide entrance openings

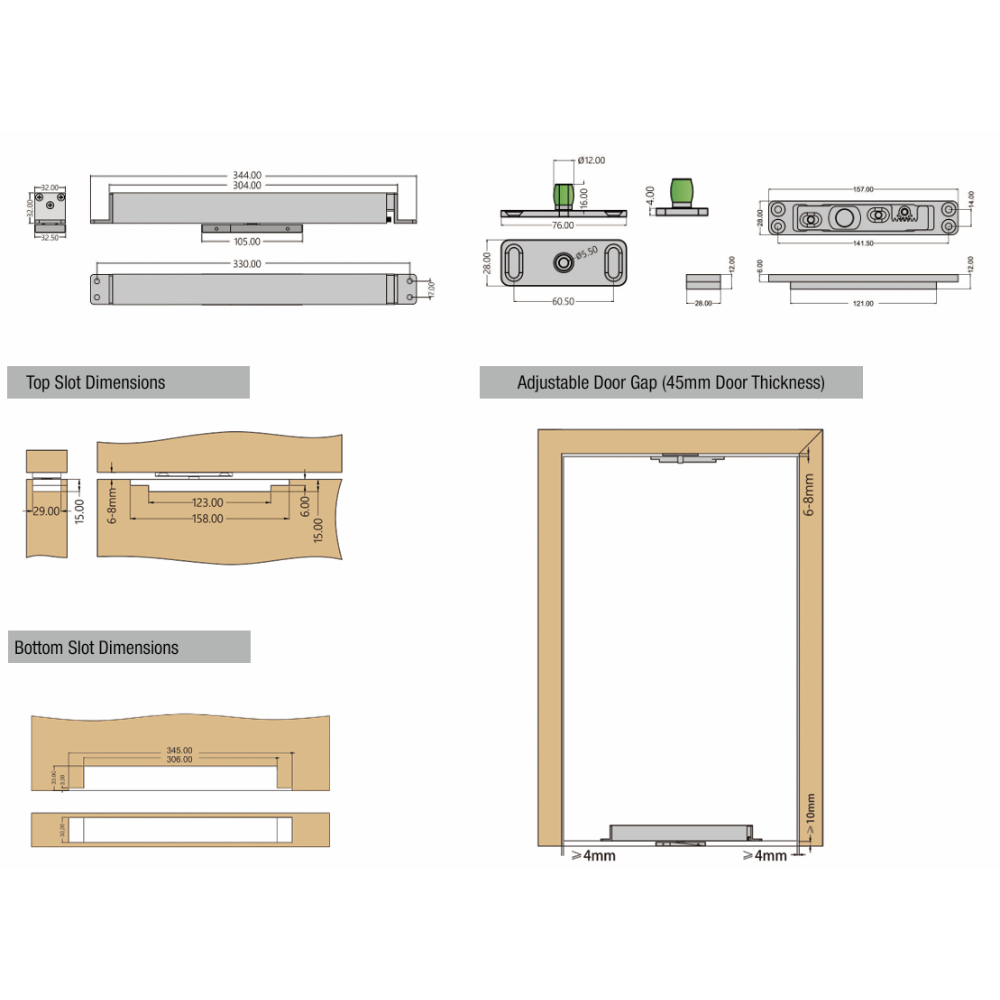

🔧 Installation Details
- Top and bottom mounting system
- Requires slot cutting for proper installation
- Adjustable door gap for precise alignment
- Recommended for professional installation
