MOTORISED FOLDING BED MECHANISM – FRONT FITTING
Smart Space-Saving Bed. Motorised Comfort at the Touch of a Button.
The CS07 Motorised Bed Mechanism for Front Fitting is designed to transform a cabinet into a practical folding bed solution. With a motor-driven opening and closing system, the bed can be conveniently folded away when not in use, helping maximize available living space.
Key Features
✔ Motorised Folding Mechanism
The integrated motor-driven system allows the bed to be folded and unfolded with minimal effort, providing convenient everyday operation.
✔ Front Fitting Design
Designed for front fitting installation, making it suitable for integrated cabinet and wall-bed applications.
✔ Space-Saving Solution
When folded, the bed is stored vertically inside the cabinet, freeing up valuable floor space for other activities.
✔ Smooth Folding & Unfolding
The motorised mechanism provides controlled movement during opening and closing for a convenient user experience.
✔ Gas Spring Assisted System
The mechanism incorporates gas spring support to assist the bed movement and ensure smooth operation.
✔ Suitable for Single & Double Beds
Available in configurations suitable for both Single Bed 900 × 2000mm and Double Bed 1500 × 2000mm.
✔ Mattress Thickness ≤150mm
Designed for mattresses with a maximum thickness of 150mm.

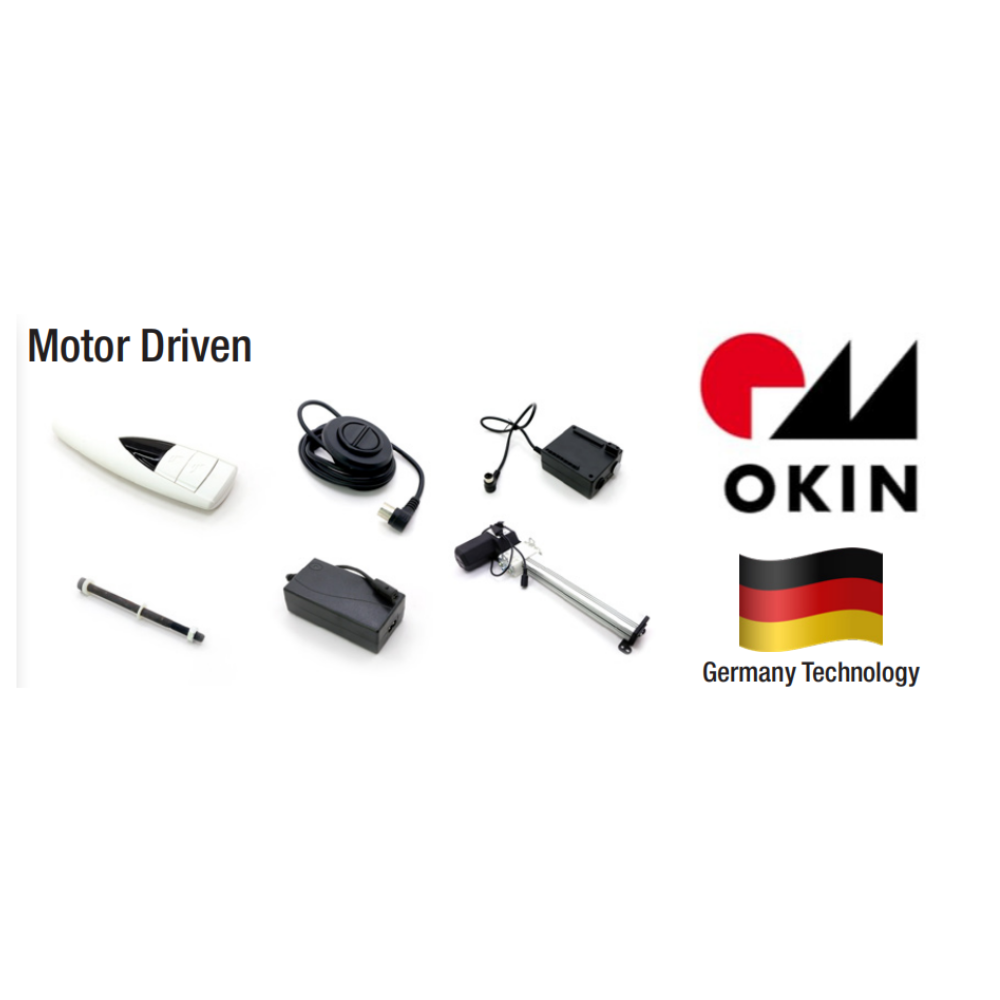

✔ OKIN Germany Technology
The motor-driven system features OKIN technology for the motorised mechanism.
Benefits
-
Maximizes room space by folding the bed into a cabinet.
-
Motorised opening and closing for convenient operation.
-
Smooth and controlled folding movement.
-
Suitable for both single and double bed applications.
-
Front fitting design for integrated cabinet installations.
-
Supports mattress thickness up to 150mm.
-
Ideal for multi-functional rooms and space-saving interiors.
-
Suitable for bedrooms, guest rooms, studio apartments, and compact living spaces.
Ideal For
-
Space-Saving Bedrooms
-
Guest Rooms
-
Studio Apartments
-
Small Apartments
-
Multi-Functional Rooms
-
Home Offices with Guest Bed
-
Built-In Cabinet Systems
-
Modern Interior Projects

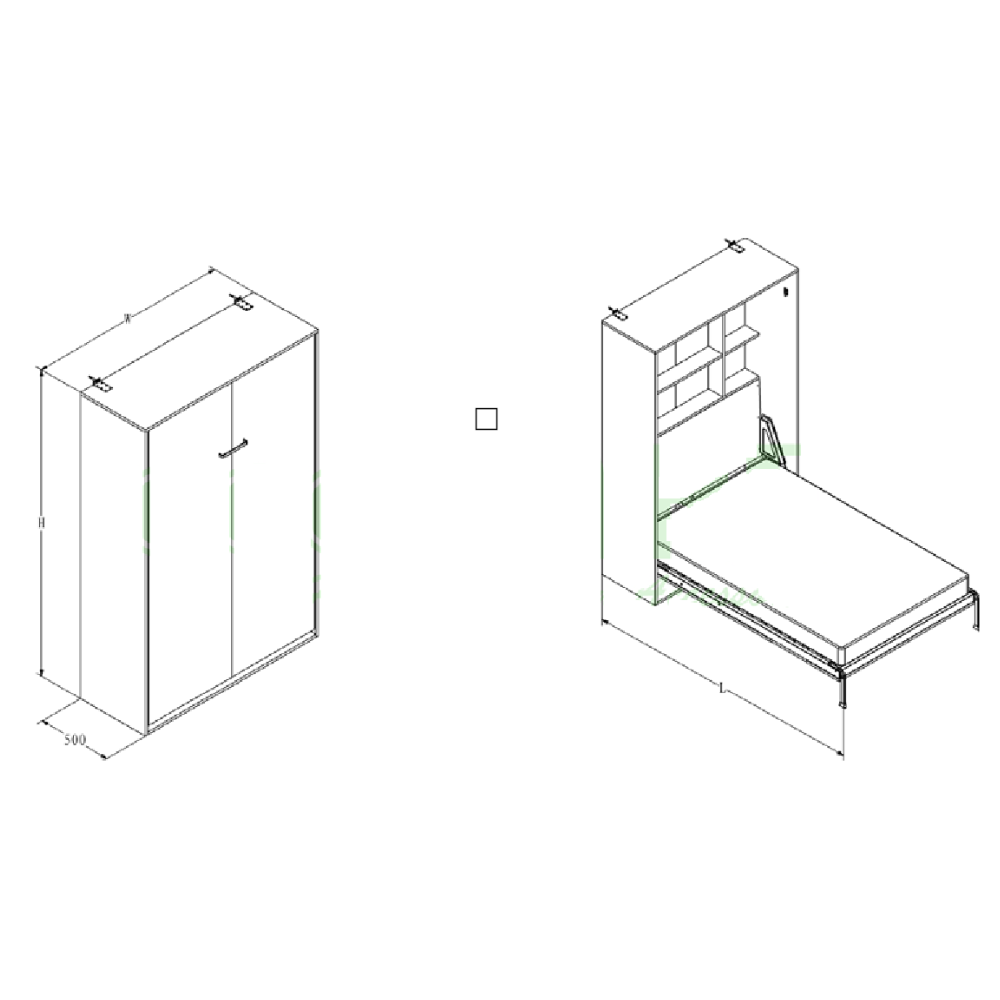

Single Bed Configuration
| Specification | Details |
|---|---|
| Code | S-BS-CS07S-MOTOR |
| Length (L) | 2330 (+100)mm |
| Width (W) | 1038mm |
| Cabinet Width (W1) | 1002mm |
| Height (H) | 2143mm |
| Cabinet Height (H1) | 2125mm |
| Cabinet Height (H2) | 2107mm |
| Mattress Weight | 20–23kg |
| Mattress + Panel Weight | 50–55kg |
| Suitable Bed Size | Single Bed 900 × 2000mm |
Double Bed Configuration
| Specification | Details |
|---|---|
| Code | S-BS-CS07D-MOTOR |
| Length (L) | 2330 (+100)mm |
| Width (W) | 1638mm |
| Cabinet Width (W1) | 1602mm |
| Height (H) | 2143mm |
| Cabinet Height (H1) | 2125mm |
| Cabinet Height (H2) | 2107mm |
| Mattress Weight | 32–36kg |
| Mattress + Panel Weight | 70–75kg |
| Suitable Bed Size | Double Bed 1500 × 2000mm |
Technical Specifications
Product Type: Motorised Folding Bed Mechanism
Model: CS07
Installation: Front Fitting
Drive System: Motor Driven
Technology: OKIN Germany Technology
Mattress Thickness: ≤150mm
Operation: Motorised Folding & Unfolding
Gas Spring: Included
Suitable Bed Sizes: 900 × 2000mm / 1500 × 2000mm

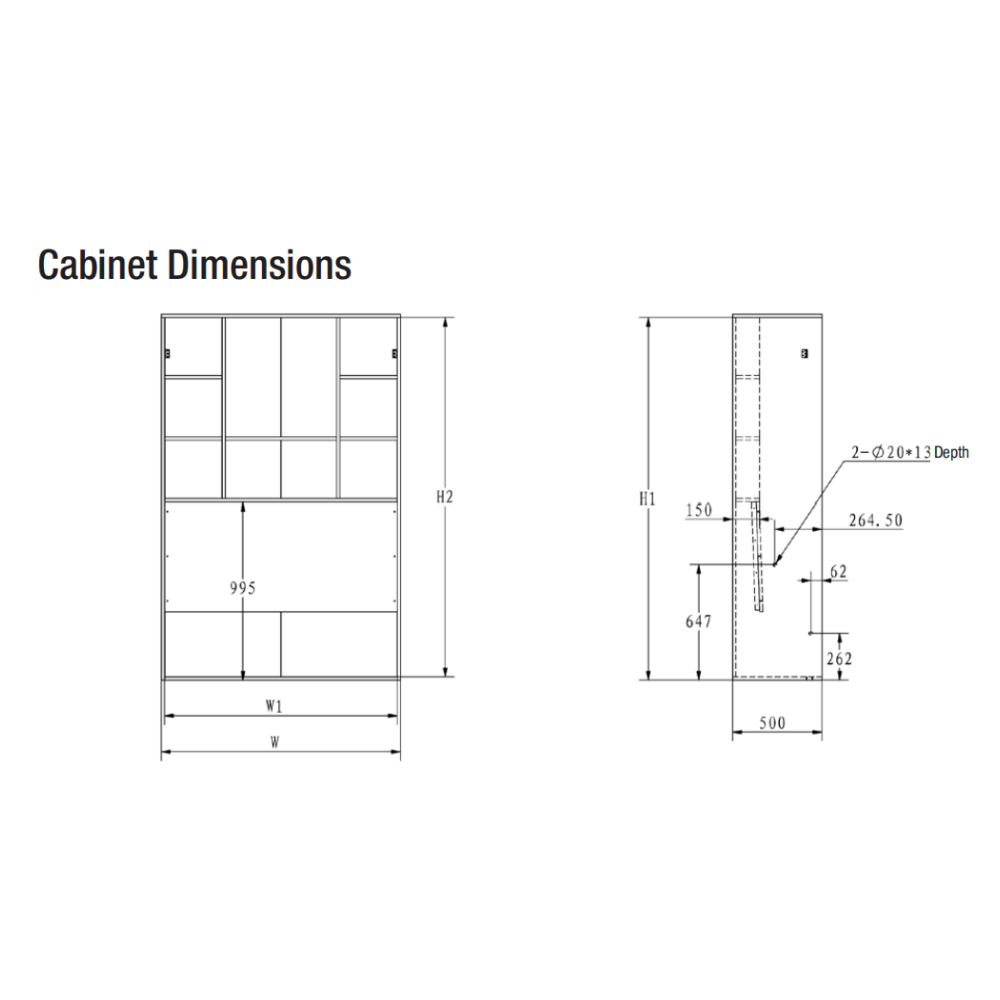

Cabinet Requirements
Mattress Thickness: Maximum 150mm
Single Bed: 900 × 2000mm
Double Bed: 1500 × 2000mm
Motorised Folding Bed Mechanism
A smart space-saving solution that transforms a cabinet into a comfortable folding bed, combining motorised operation, gas spring assistance, and front-fitting installation to create a practical multi-functional living space.
