HETTICH Lario Base Pull-Out – Series 400

LARIO Base Pull-Out – Series 400

Base Unit Interior Fittings

Product Description

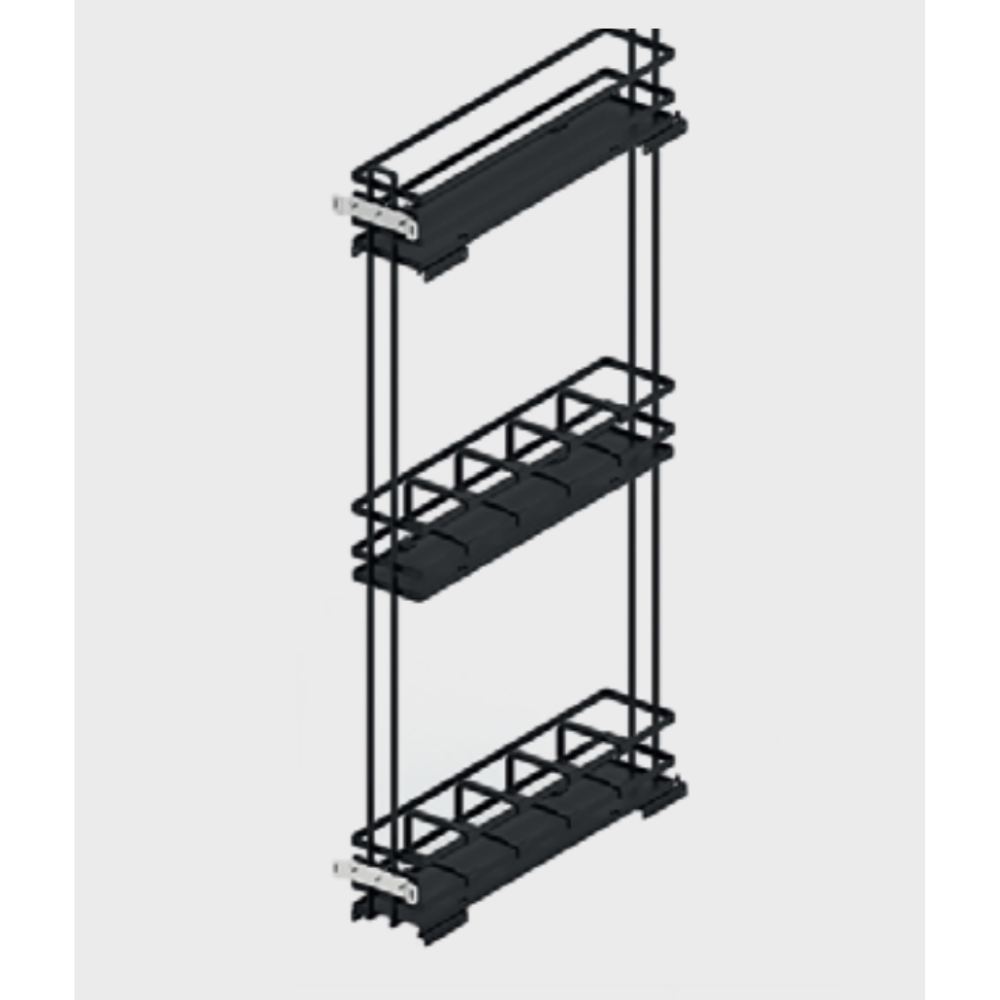

The LARIO Series 400 Base Pull-Out is a slim 3-tier pull-out basket system designed for narrow base cabinets. Featuring HDF panels, flat wire railings, and flexible runner installation options, it offers practical and space-efficient storage for bottles, condiments, and kitchen essentials.

When combined with Quadro V6 full extension runners with Silent System, the unit ensures smooth, quiet, and stable operation.

Key Features

• 3-tier base pull-out basket with 5 mm HDF panels and flat wire railings

• Compatible with Quadro V6 full extension runners with Silent System
  (runners to be ordered separately)

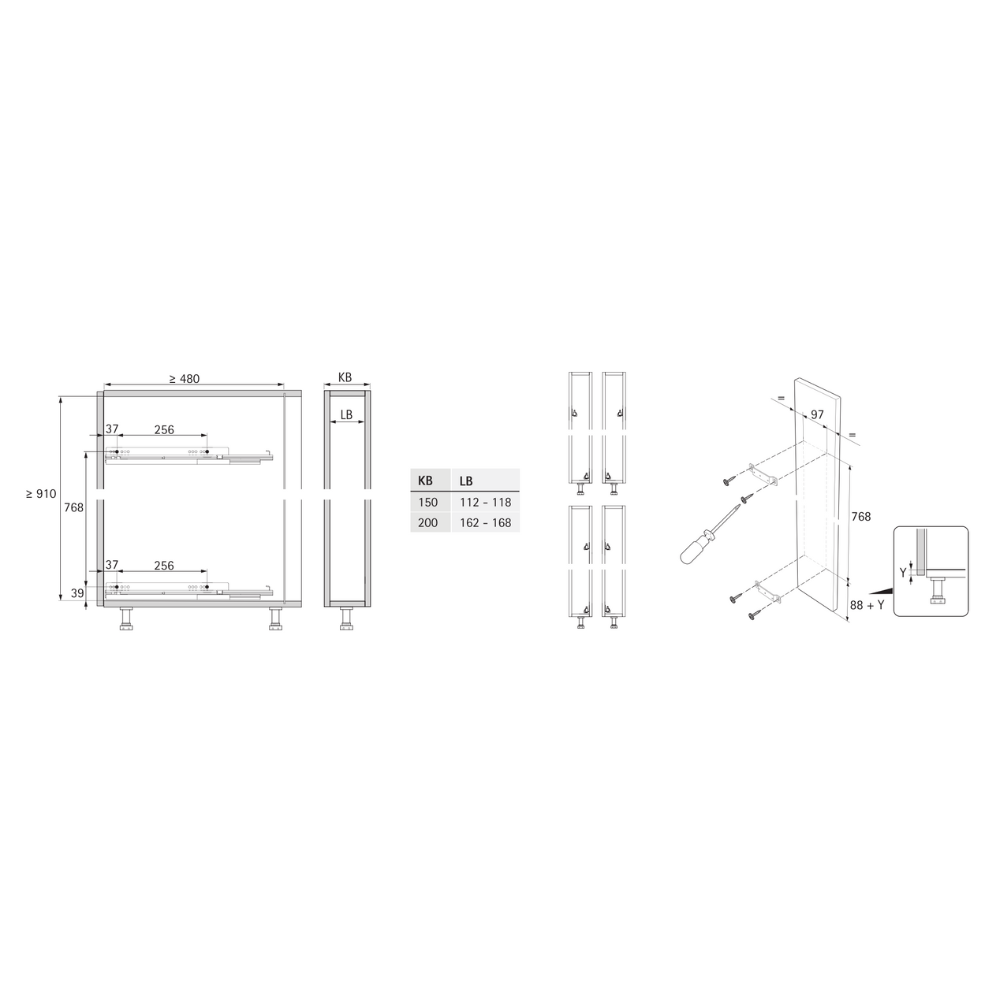

• Flexible installation options:

  • Runners on the left side

  • Runners on the right side

  • Crossed installation

• Load capacity: 10 kg

• Material & finish:

  • Powder-coated steel

  • HDF panels (Anthracite)

  • Divider bars (plastic)

  • Colour options: transparent or anthracite

Set Includes

• 1 × 3-tier pot-and-pan pull-out drawer (preassembled)

• 2 × Front panel connectors

• 8 × Divider bars

(Packing unit: 1 set)

Quadro Runners (Optional)

Product Description

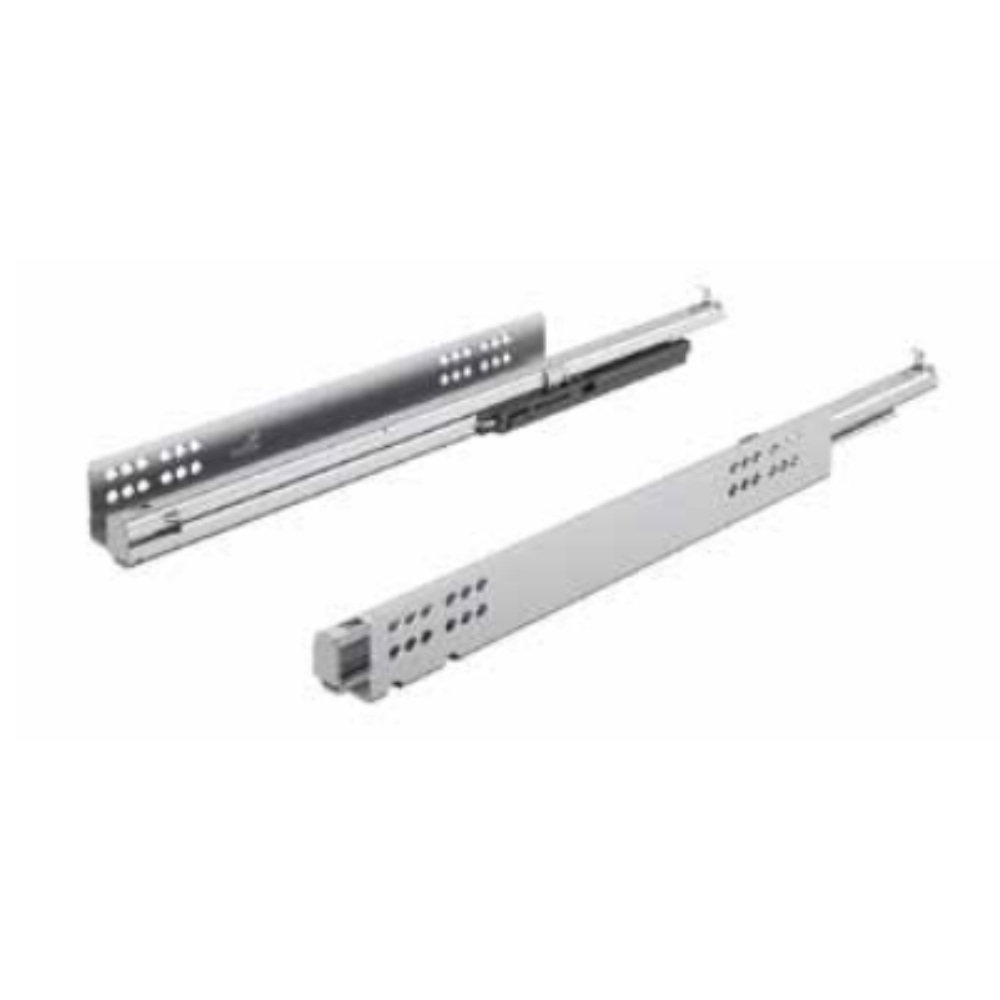

High-quality Quadro V6 full extension drawer runners with Silent System soft closing, designed to deliver smooth, quiet, and reliable movement.
